Main function: Product Identification – Mark text, numbers, or patterns on the surface. Information Coding – Mark serial numbers, QR codes, dates, etc. Brand Display – Engrave logos to enhance brand recognition. Traceability – Help track and manage products. Anti-counterfeiting – Improve product security. Permanently mark text, logos, or information on product surfaces.
0086-150-1350-9330
More Video link

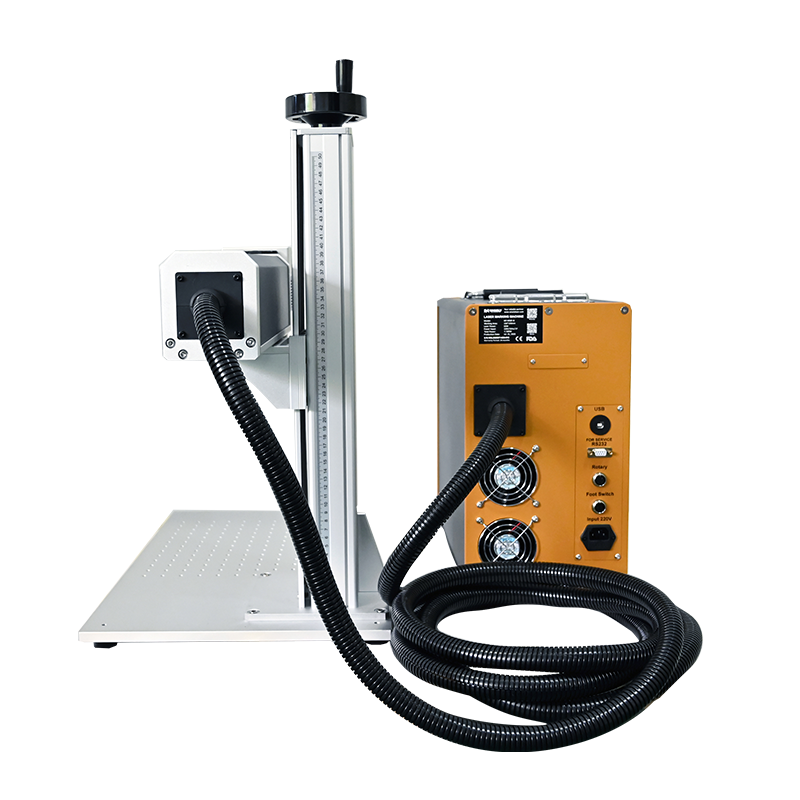

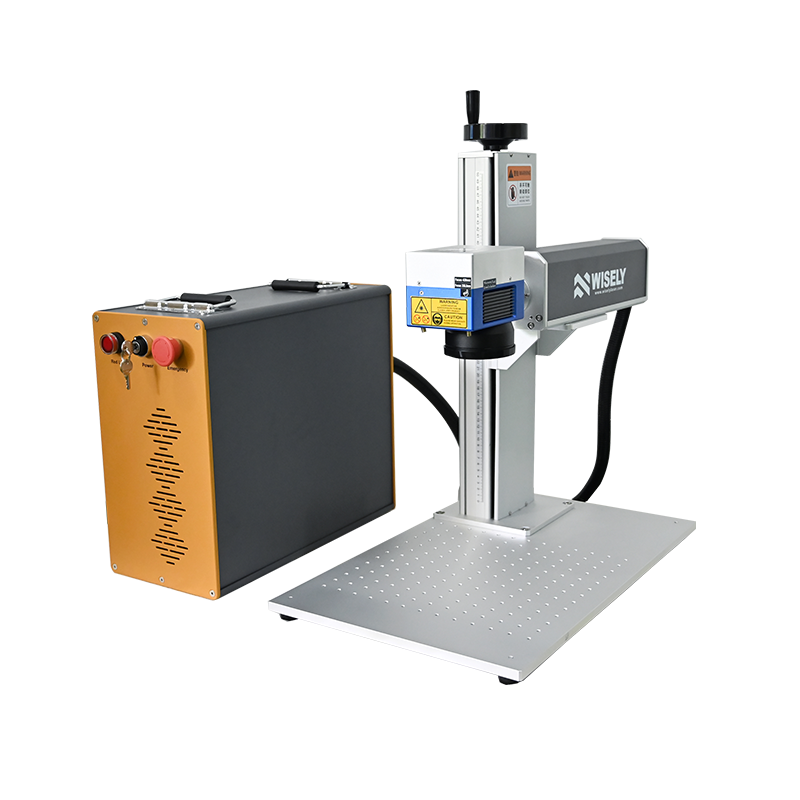

1. Portable Type-III Laser Engraving Machine - How to use? https://youtu.be/bykEjEdHNH8
2. 0~2mm Deep Laser Engraving on Copper, Stainless, Aluminum steel: https://youtu.be/Bo6C8h7a9_c
3. 30 Watt Fiber Laser Deep Engraving on Stainless Dial: https://youtu.be/OX-FYdVZbz0
4. 50 Watt Fiber Laser Deep Engraving on Stainless: https://youtu.be/r5HqM_VH2t8
5. 100 Watts Fiber Laser Deep Engraving on Aluminum: https://youtu.be/n7hzp311ry8
Feature
1) Long lifespan of fiber laser source: 100,000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times that of traditional products.
5) No Consumables: One marker can work for more than 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, with no need to adjust the laser beam path.
7) High-precision and high-speed scan head, with a good seal, capable of preventing dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, and easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI, and other format files output from CorelDraw, AI, PS, AutoCAD, Solidworks, etc...
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Application material
| Aluminum | Gold | Silver | Stainless Steel | Brass | Titanium |
| Titanium | Copper | Platinum |
Carbide |
Nickel | Carbon steel |
| Iron | Crome | Silicon | Plastic | Colored Acrylic | Hard plastic |
| Granite | Marble | Tile | ABS | PVC | Ceramic |
| Stone | PLA plastic | PBT plastic |
Technical Parameters
| Model | WSL-M20F-III | |||||||||
| Power | 20W / 30W / 50W / 100W | |||||||||
| Laser Wavelength | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70 /100*100 /200*200 /250*250 /300*300 /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.003mm | |||||||||

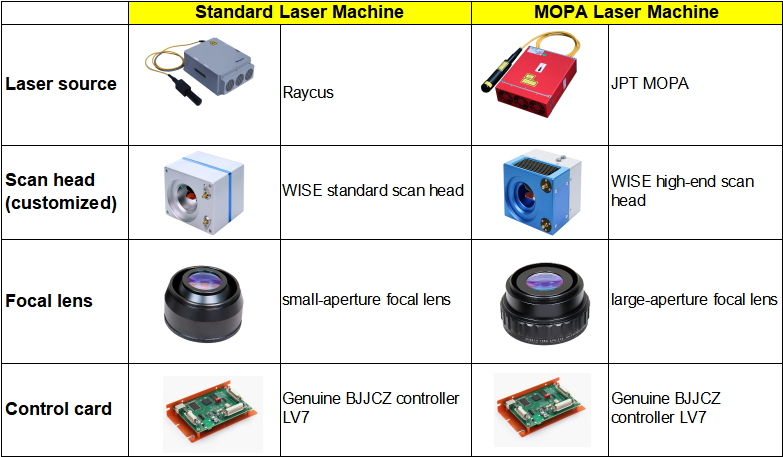

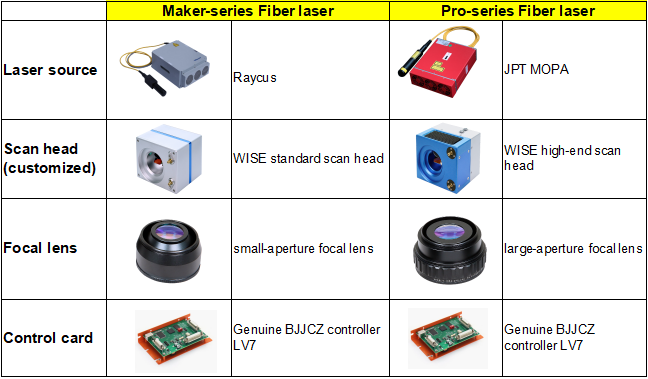

| Fiber Laser Source | Genuine Raycus | |||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
| Controller (software) |
JCZ Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) |
|||||||||
| Life span of Fiber Laser Module | 100 000 hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1~600KHz | |||||||||
| Power Stability (8h) | <±1.5%rms | |||||||||
| System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits | |||||||||
| Cooling Mode | Air cooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 700*400*650mm | |||||||||
| Package Size | 850*500*870mm | |||||||||
| Net Weight | 45KG | |||||||||
| Gross Weight | 75KG | |||||||||

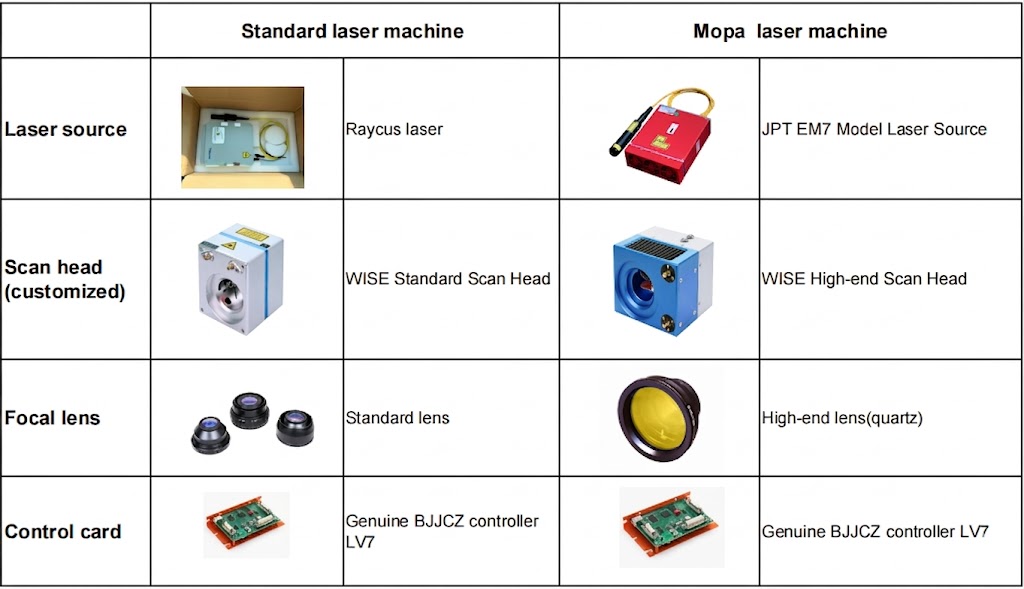

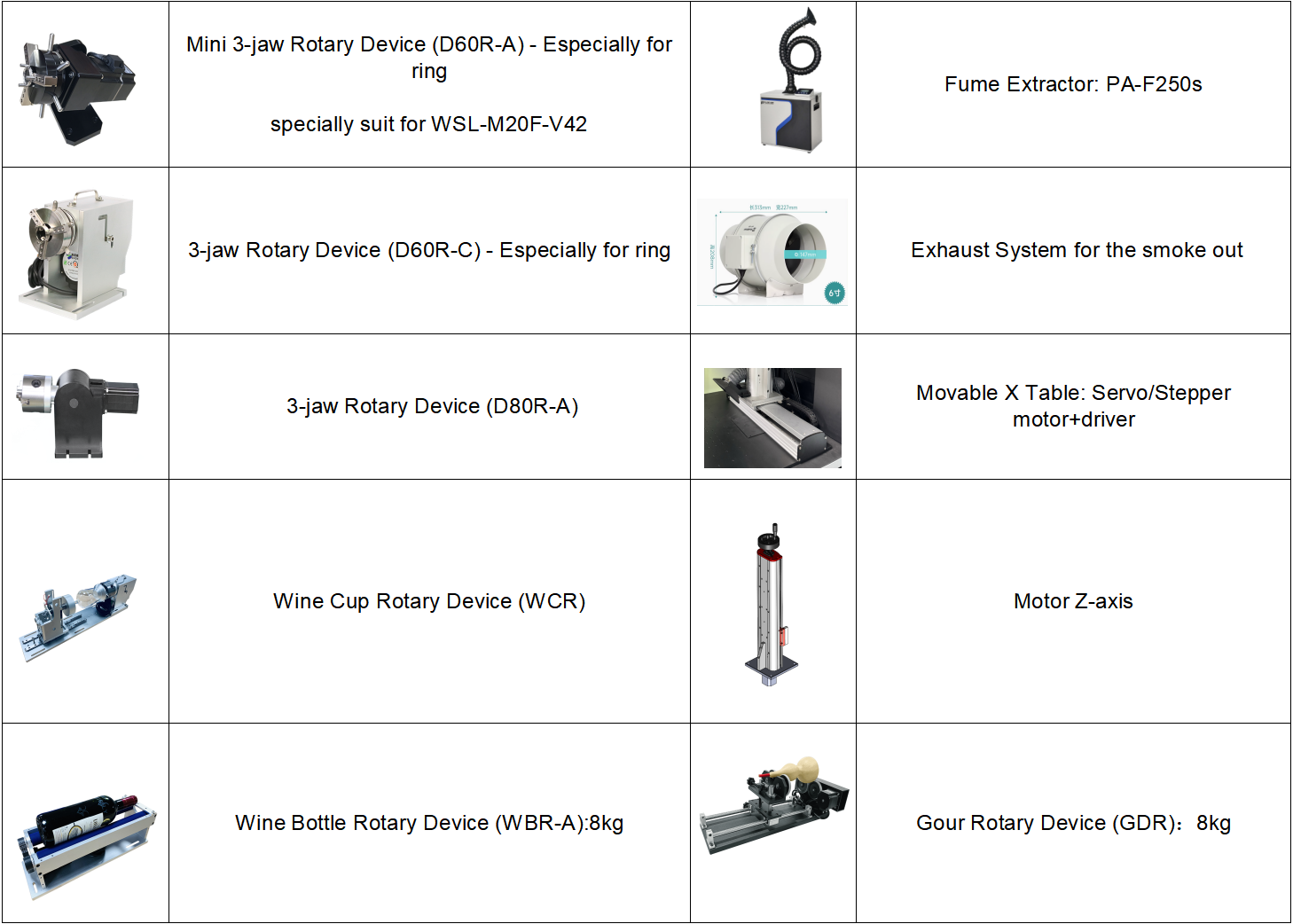

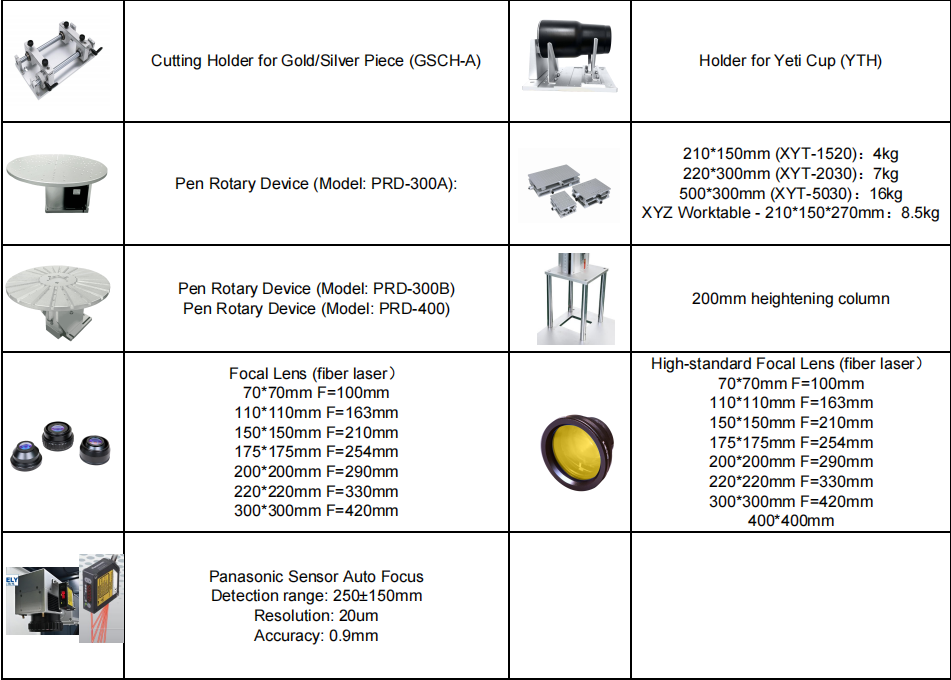

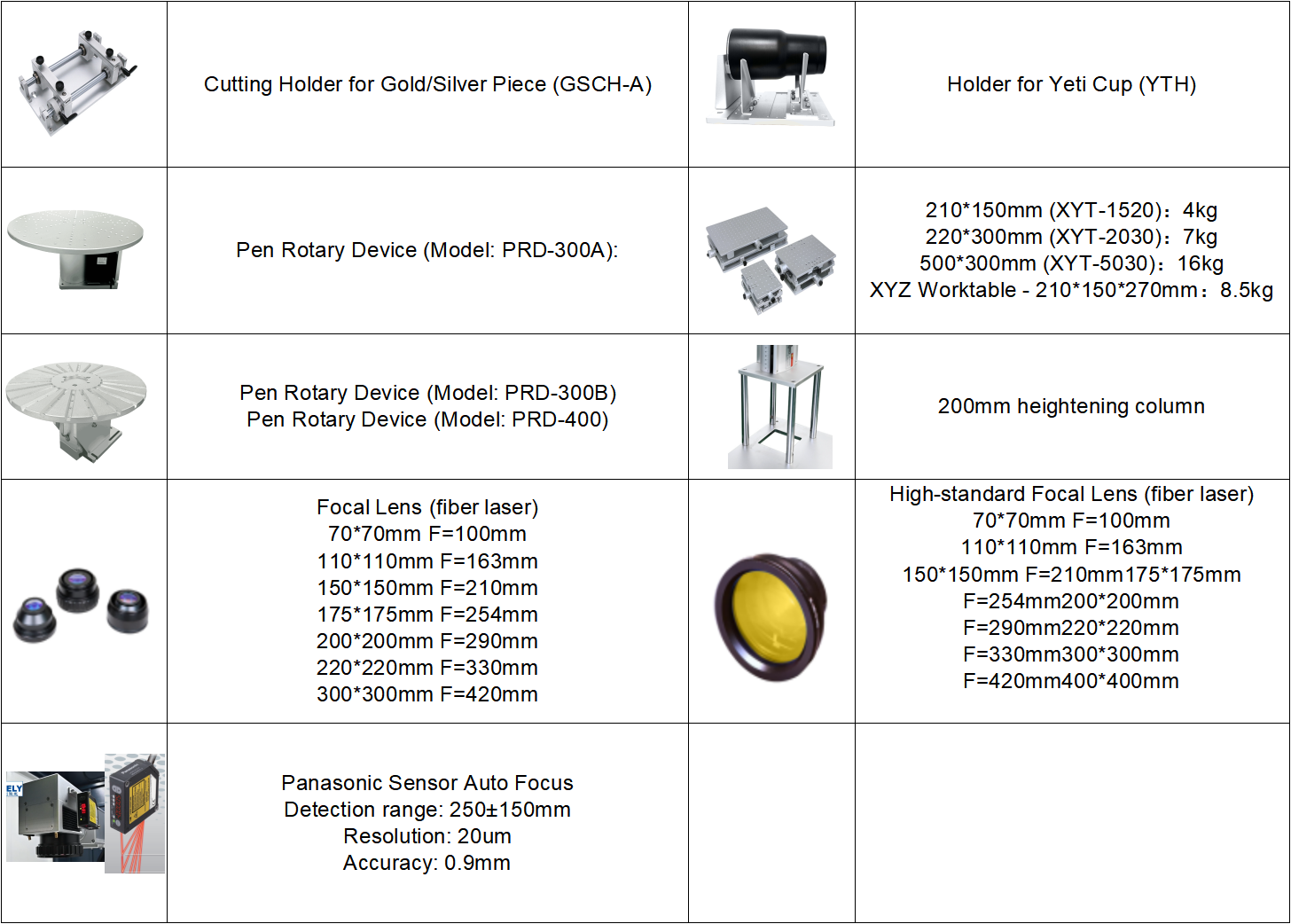

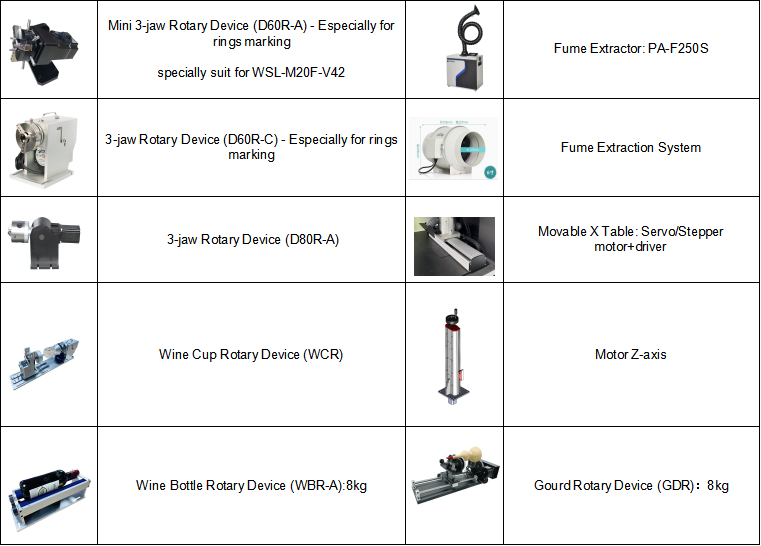

Optional Devices
Payment
Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.
T/T, Paypal, Western Union, Credit Card, Alibaba.
Shipment
The machine will be sent out within 3-6 working days after payment is received.
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.

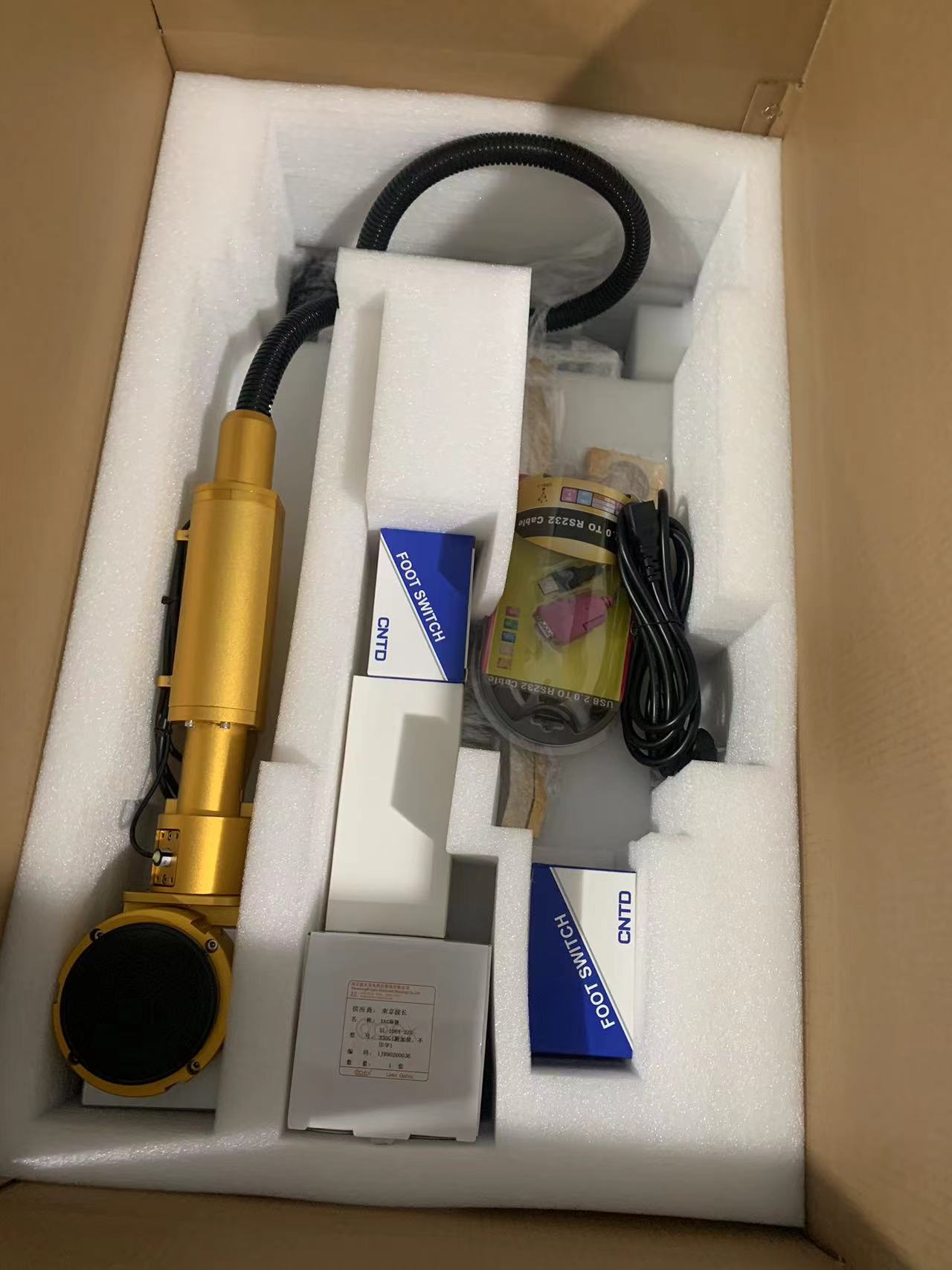

Packaging
International standard plywood box / anti-carsh paper box
Warranty
1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.
2. Wisely will send you the parts and take the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)
Training
Detailed user manual & step-by-step operation videos
Fast response (16 hours/day online support)
More models you may interest
|
|
|
|
|
|

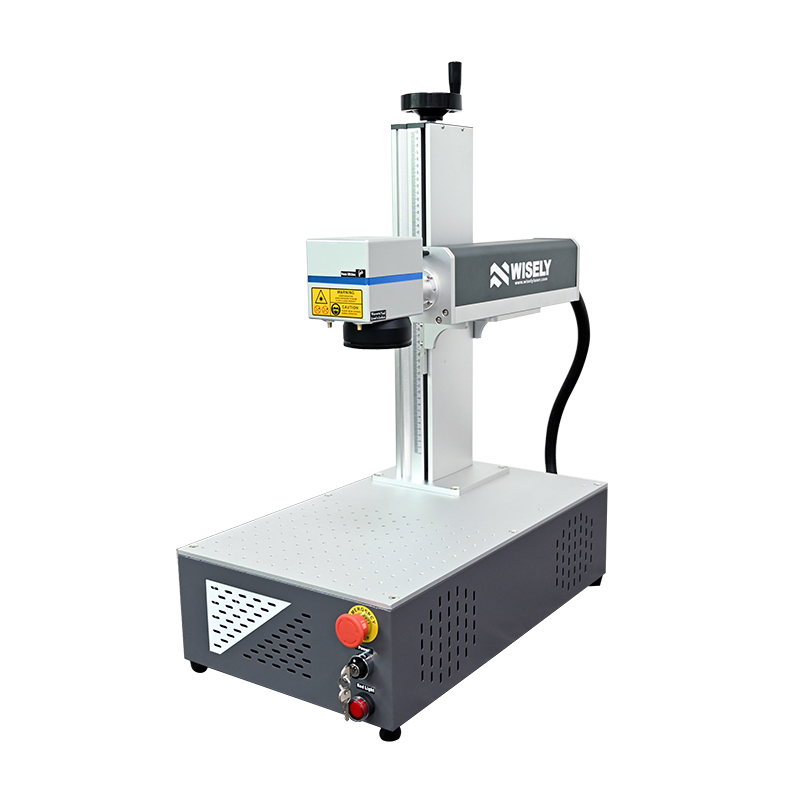

Fiber Laser Marking Machine-Type IV |

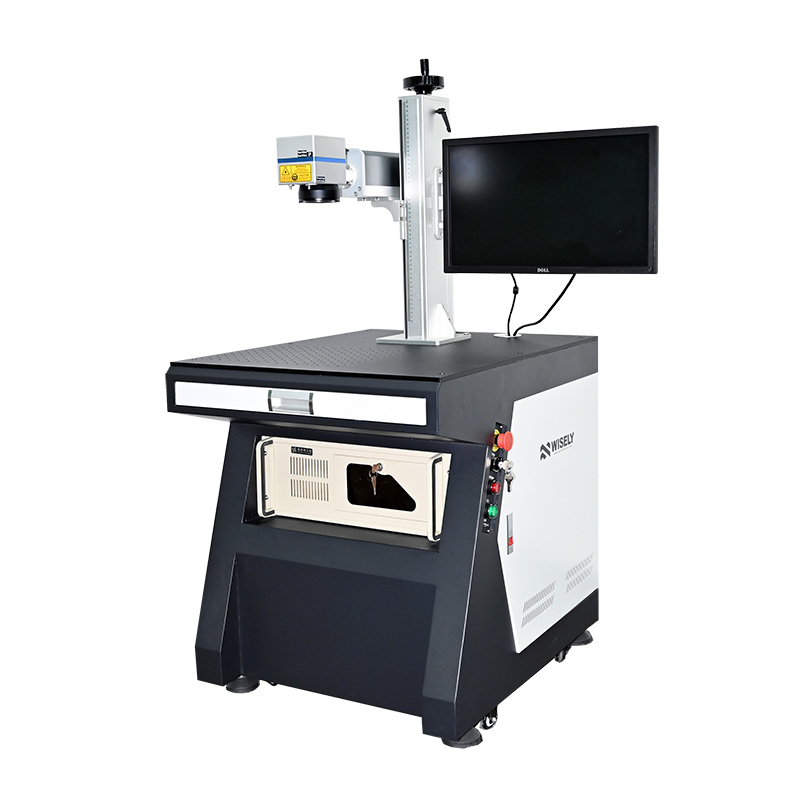

Fiber Laser Marking Machine-Type II |
Fiber Laser Machine Enclosed Raycus Type V42 |

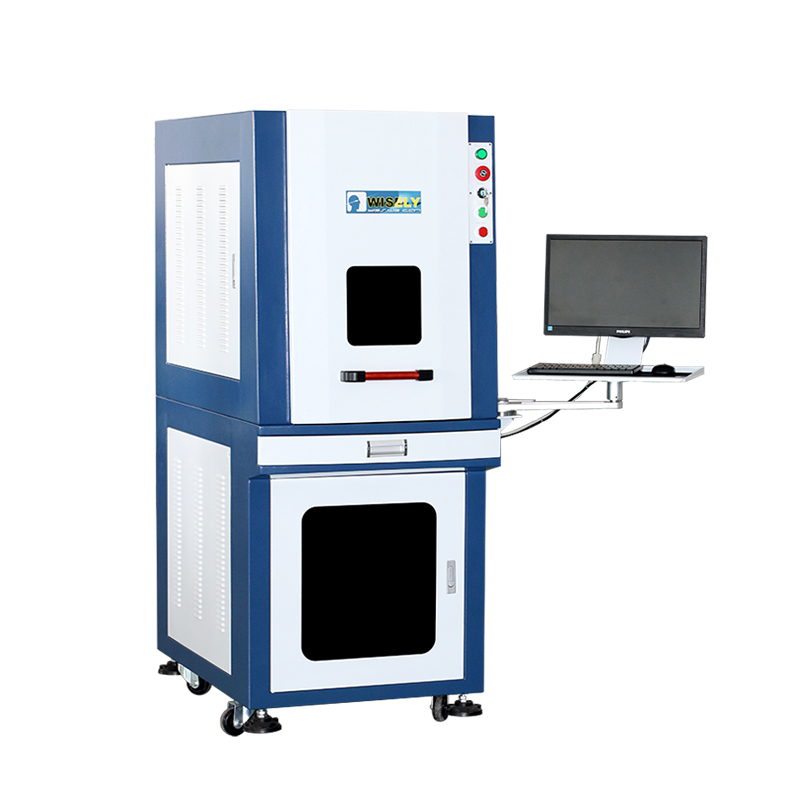

Laser Marking Machine-Type V |
